frequency converter freqency inverter ac driver
Specifics
_______________________________________

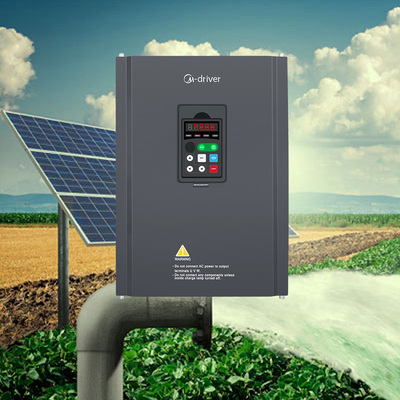

220V Solar Pumping Inverter | |
Input Specification | |
PV input | |
Maxiumum input DC voltage | 400V DC |
Recommended MPPT voltage range | 250~350V DC |
Recommended input Operation Voltage | 310V DC |
Grid or backup generator input | |
Input voltage | Single phase 220V(-15%~30%) |
Output Specification | |
Rated output voltage | 3PH 220V |
Output frequency | 0~500.00Hz (default: 0~50.00Hz) |
380V Solar Pumping Inverter | |
Input Specification | |
PV input | |
Maxiumum input DC voltage | 800V DC |
Recommended MPPT voltage range | 450~600V DC |
Recommended input Operation voltage | 540V DC |
Grid or backup generator input | |
Input voltage | Three phase 380V(-15%~30%) |
Output specification | |
Rated ouput voltage | 3PH 380V |
Output frequency | 0~500.00Hz (default: 0~50.00Hz) |
Protection | |
Built-in Protection | Lighting Protection ,over-current, overvoltage, ouput phase lose, under-load, under-voltage, short circuit , overheating, water pump run dry etc. |
General Parameters | |
Application site | No direct sunshine, no dust,corrosive gas,combustible gas, oil mist, steam,dripping or salinity etc. |
Altitude | 0~2000m |
Derated use above 1000m, per 100m, the rated output current decrease 1% | |
Environment Temperature | -10°C~40°C (Environment Temperature be 40°C~50°C, please keep derated use) |
Humidity | 5~95%, non-condensation |
Vibration | less than 5.9 m/s²(0.6G) |
Storage Temperature | -20°C~+70°C |
Efficiency | Rated Power Run≥93% |
Installation | Wall or rail mounting |
Protectiion Grade | IP20 |
Cooling | Forced Air Cooling |
Type | Drive motor | Power capacity | Input current | Output current | Shape case |
KW | KVA | A | A | ||
Single phase power supply: 220V, 50/60A | |||||
PV500-0004M1 | 0.4 | 0.5 | 5.4 | 2.5 | 000 |
PV500-0007M1 | 0.75 | 1 | 8.2 | 4 | 000 |
PV500-0015M1 | 1.5 | 2 | 14 | 7 | 000 |
PV500-0007G1 | 0.75 | 1 | 4.2 | 4 | 001 |
PV500-0015G1 | 1.5 | 2 | 14 | 7 | 001 |
PV500-0022G1 | 2.2 | 3 | 23 | 10 | 001 |
Three phase power supply; 220V ,50/60hz |
PV500-0040G2 | 4 | 5 | 18.1 | 16 | 002 |
PV500-0055G2 | 5.5 | 7.5 | 28 | 25 | 003 |
PV500-0075G2 | 7.5 | 10 | 37.1 | 32 | 003 |
PV500-0110G2 | 11 | 15 | 49.8 | 45 | 004 |
PV500-0150G2 | 15 | 20 | 65.4 | 60 | 004 |
PV500-0185G2 | 18.5 | 25 | 81.6 | 75 | 004 |
PV500-0220G2 | 22 | 30 | 97.7 | 90 | 005 |
PV500-0300G2 | 30 | 40 | 122.1 | 110 | 005 |
PV500-0370G2 | 37 | 50 | 157 | 150 | 006 |
PV500-0450G2 | 45 | 60 | 185 | 170 | 006 |
PV500-0550G2 | 55 | 70 | 215 | 210 | 007 |
PV500-0750G2 | 75 | 100 | 320 | 300 | 007 |
Three phase power supply: 380V ,50/60hz | |||||
PV500-0007G3 | 0.75 | 1 | 3.4 | 2.1 | 001 |
PV500-0015G3 | 1.5 | 2 | 5 | 3.8 | 001 |
PV500-0022G3 | 2.2 | 3 | 5.8 | 5 | 001 |
PV500-0040G3 | 4 | 5 | 10.5 | 9 | 002 |
PV500-0055G3 | 5.5 | 7.5 | 14.6 | 13 | 002 |
PV500-0075G3 | 7.5 | 10 | 20.5 | 17 | 002 |
PV500-0110G3 | 11 | 15 | 26 | 25 | 003 |
PV500-0150G3 | 15 | 20 | 35 | 32 | 003 |
PV500-0185G3 | 18.5 | 25 | 38.5 | 38 | 003 |
PV500-0220G3 | 22 | 30 | 46.5 | 45 | 004 |
PV500-0300G3 | 30 | 40 | 62 | 60 | 004 |
PV500-0370G3 | 37 | 50 | 76 | 75 | 004 |
PV500-0450G3 | 45 | 60 | 92 | 90 | 005 |
PV500-0550G3 | 55 | 70 | 113 | 110 | 005 |
PV500-0750G3 | 75 | 100 | 157 | 150 | 006 |
PV500-0930G3 | 93 | 125 | 180 | 170 | 006 |
PV500-1100G3 | 110 | 150 | 214 | 210 | 007 |
PV500-1320G3 | 132 | 175 | 256 | 250 | 007 |
PV500-1600G3 | 160 | 210 | 307 | 300 | 007 |
PV500-1850G3 | 185 | 250 | 385 | 340 | 008 |
PV500-2000G3 | 200 | 260 | 385 | 380 | 008 |
PV500-2200G3 | 220 | 300 | 430 | 415 | 008 |
PV500-2500G3 | 250 | 350 | 468 | 470 | 008 |
PV500-2800G3 | 280 | 370 | 525 | 520 | 008 |
PV500-3150G3 | 315 | 400 | 590 | 585 | 009 |
Product details
_______________________________________
Connection diagram
_______________________________________
Q 1: Are you trading company or manufacturer ?
We are factory.
Q 2: How long is your lead time?
Generally 3-7 days if the goods are in stock, or 10-20 days if the stocks are not enough, it is according to quantity.
Q 3: Do you provide samples ? is it free or extra ?
Yes, we provide samples and charge for the samples with freight cost. The sample fees will be returned if the order quantity over 500pcs.
Q 4: What is your terms of payment ?
We accept T/T(30% deposit, 70% balance), L/C and CASH.
Q 5: What is the standard of package?
Single small carton or plywood crate.
Q 6. Is there any discount ?
The discount will depend on the quanlity you purchase.
Q 7. What is your supply capacity?
The daily production is 500pcs.
Q 8. Do you provide warranty for the goods?
Yes, we provide 18 months warranty for all the goods.
Q 9. Could M-driver provide technical support?
Yes, we worked 19 years in this field and have a lot of experienced engineers, they will provide solutions if get a problem.
