Thuis /Producten/Solar VFD-omvormer/Solar Pump Inverter MPPT solar VFD Lost cost 0.4KW 220V Single-phase input & output Frequency Inverter

Solar Pump Inverter MPPT solar VFD Lost cost 0.4KW 220V Single-phase input & output Frequency Inverter

1 Piece
MOQ
$55.00(1 - 9 Pieces) $53.00(>=10 Pieces)
Prijs
Solar Pump Inverter MPPT solar VFD Lost cost 0.4KW 220V Single-phase input & output Frequency Inverter
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Network: /
Customized support: Software reengineering
Model Number: V3-PV-0R4G-S2
Type: DC/AC Inverters
Output Type: Single
Output Current: 2.5A
Output Frequency: 50/60Hz
Size: 85*143*116mm
Weight: 1.3KG
Product Name: PV Solar Pump Inverter
Rated power: 0.4kw
Overload Capacity: 150%/1mins
Warranty: 18Months
Display: LED
Frequency: 50/60Hz
Ambient Temperature: -10~+50C
OEM: Accepted
Package Dimensions: 23*16*17cm
Basis informatie
Model Number: V3-PV-0R4G-S2
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Standard Export Carton
Productomschrijving
Product Description
Product description

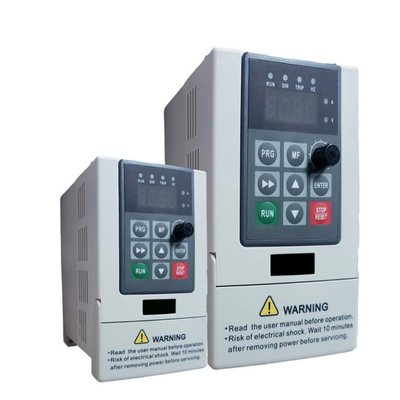

V3-PV Solar Pump Inverter

V3-PV series solar pump inverter is one low voltage AC drive of 0.4 to 7.5kw power range designed to make use of energy drawn from
solar panel or photovoltaic cells(PV).

The inverter is customized to operate in dual supply mode,so the grid connected supply technology of maximum power point
tracking(MPPT)algorithm to derive maximum power from the PV cells at any instant.

The inverter is specifically designed to meet the requirements of pump manufacturers and the original equipment manufactures(OEM).



Details Images



Product Features
Control modes
The solar pump inverter operates in local control mode and in remote control mode;identical to the ordinary V3 frequency inverter.
.Local control--interfaces through the operation panel(keypad)
.Remote control--interfaces through external terminals control.
Note:Ensure that the drive is in local control before starting or stopping the inverter using the control panel.
1 Maximum power ponit tracking(MPPT) with fast response speed and stable operation.
2 Dry run(under load) protection
3 Motor maximum current protection
4 Input power protection
5 Low stop frequency protection
6 The PQ(power/flow) performance curve enables calculating the flow output from the pump
7 Digital control for fully automatic operation,data storage and protective functions
8 Intelligent power module(IPM) for the main circuit
9 LED display operating panel and support input is available
10 Low water probe sensor,and water level control funtion
11 Ambient temperature for using:-10 to +50℃
Product packaging

Carton packing 1


Carton packing 2

Carton packing 3

Product Paramenters
Input/Output Voltage
Power
(KW)
Output current
(A)
W
(mm)
H
(mm)
D
(mm)
D1
(mm)
Mounting aperture
(mm)


80~400VDC
/0~250V AC
0.4
2.5


85


143


116


126







4.5
0.75
5
1.5
7
2.2
10


100


151


120


130



120~800VDC/0~450VAC
0.75
3
1.5
4
2.2
5
3.7
8.5


125


220


166


176
5.5
13
7.5
17
other products
Company Profile

FMZ Profile


Shanghai FMZ Industry Co., Ltd specializes in R&D, manufacture, sales and professional technical services upon industrial
automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft starter, HMI, motor servo, PLC and other general parts.
Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil,plastics, chemicals, municipal project and other industries.
We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world.
About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning, operation or problem shot and offer free training.
Our business philosophy is to ‘Always be with you and enjoy success together.
FAQ
1.what's the payment term?
T/T,L/C,D/P,WEST UNION,CASH Alibaba
2.what's the delivery time?
3-15 days.
3.what is the standard of package?
Export standard package or special package according to customer.
4.what is the warranty?
18 months after delivery.
5.what is the export experience?
Europe(Denmark,Poland,Russia,etc),Middle East(Iran,SA,UAE,etc),south
America(Mexico,Columbia,Brasil,etc),Asia(India,Pakistan,Bangladesh,Vietnam,Thailand,Indonesia,Malaysia,etc),Afria(Kenya,Zimbabwe,Negeria,etc)
6.What is trade Term?
EX-Works, FOB China, CFR & CIF
7.Do you accept OEM business?
 We accept OEM under your autherization.
8.what about the aftersales service?
We have one mature after-sales service team. Normally we offerquick technical support via email or online talking tools like
whatsapp, wechat or others. If urgent or necessary, we also can send our technician to your site with full-time support.
9.Do you accept OEM/ODM service request?
OEM or ODM service is available
10.Is it training available for your technician?
Yes, Definitely we warmly welcome your technician to acceptrelated maintenance and repair training in our factory. We will help
arrange the hotel and food .
