Thuis /Producten/Zonne de pompomschakelaar van MPPT/DC To AC 220v 50hz 110v 60hz Inverters Split Phase Transformer 120V Off Grid Inverter 50*30*12 cm

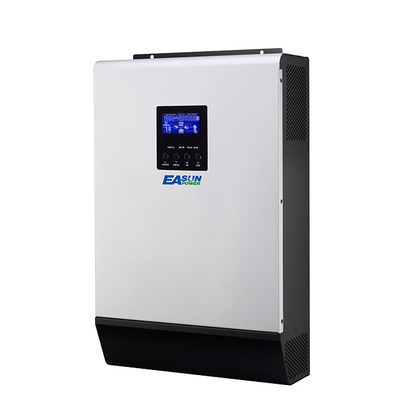

DC To AC 220v 50hz 110v 60hz Inverters Split Phase Transformer 120V Off Grid Inverter 50*30*12 cm

1 Piece
MOQ
$414.50(1 - 9 Pieces) $409.90(10 - 19 Pieces) $399.90(>=20 Pieces)
Prijs
DC To AC 220v 50hz 110v 60hz Inverters Split Phase Transformer 120V Off Grid Inverter 50*30*12 cm
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: ISolar MLVZ 3K-48V
Input Voltage: 110/120VAC
Output Voltage: 120V/220V
Output Current: 80A
Output Frequency: 50Hz/ 60Hz
Output Type: Single, DUAL
Size: 50*30*12 CM
Type: DC/AC Inverters
Inverter Efficiency: 95%
Certificate: CE
Warranty: 12 months
Weight: 13KG
Rated power: 3000w
Display: LCD Display
Maximum PV Array Power: 4000W
Transfer Time: 0ms
Waveform: Pure Sine Wave
Battery Voltage: 48 VDC
Solar Charger Type: MPPT
MPPT Range @ Operating Voltage: 60 ~ 115 VDC
Maximum PV Array Open Circuit Voltage: 145 VDC
Maximum Solar Charge Current: 80Amp
Basis informatie
Certificering: CE
Model Number: ISolar MLVZ 3K-48V
Betalen & Verzenden Algemene voorwaarden
Packaging Details: 1pc/carton, 400pcs for 20ft container or according to clients' needs.
Productomschrijving
Easun Power Zero Transfer Time Split Phase Inverter 110v 120V AC Output 3000W 3kw 48V MPPT 80A Solar Inverters
MAIN FEATURES
* Double conversion (zero transfer time)
* 110-120V Single Phase output
* 240V Split Phase possible (requires 2-unit parallel)
* Built-in MPPT 80A solar charger
* Max PV input 145V (Voc)
* Parallel up to 9 units*

* Max 3KW output, pure sine wave
* 48V system voltage
* Max solar charging 80A MPPT
* Max utility charging 60A
* Built-in genset starter dry contact
* Extensive programmable functions
* Adjustable bulk/float/low cut off setting
* Indoor installation only
* LCD + LED indicators
* FREE monitoring software
Specification
MODEL
MLVZ 1K
MLVZ 2K
MLVZ 3K
Rated Power
1000VA/1000W
2000VA/2000W
3000VA/3000W
INPUT
Voltage
120 VAC
Selectable Voltage Range
95-140 VAC
Frequency Range
50 Hz/60 Hz (Auto sensing) ± 4Hz
Power Factor
≧ 0.98 @ Nominal Voltage (100% Load)
THDi
≦ 10%
OUTPUT
AC Voltage Regulation (Line & Batt. Mode)
120VAC ± 5%
Frequency Range (Synchronized Range)
46~54 Hz or 56~64 Hz
Frequency Range (Batt. Mode)
50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Harmonic Distortion
≦3 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)
Transfer Time
AC Mode to Batt. Mode
0ms
Inverter to Bypass
4 ms (Typical)
Waveform
Pure sine wave
EFFICIENCY
Line Mode
> 90%
ECO Mode
98%
Battery Mode
88%
90%
92%
BATTERY
Battery Voltage
10~16 VDC
20~32 VDC
40~64 VDC
Floating Charge Voltage
13.5 VDC
27 VDC
54 VDC
Overcharge Protection
16 VDC
32 VDC
64 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type
MPPT
Maximum PV Array Power
1000 W
2000 W
4000 W
MPPT Range @ Operating Voltage
15~115V
30~115V
60 ~ 115 VDC
Maximum PV Array Open Circuit Voltage
145 VDC
Maxmum Solar Charge Current
80A
Maximum AC Charge Current
60A
PHYSICAL
Dimension, D x W x H (mm)
120 x 295 x468
Net Weight (kgs)
10.5
11
11.5
Communication Interface
RS232
ENVIRONMENT
Humidity
5% to 95% Relative Humidity ( Non-condensing )
Operating Temperature
-10℃ to 55℃
Storage Temperature
-15℃ to 60℃
Product Description
Packing & Delivery
1pc/carton, 400pcs for 20ft container or according to clients' needs.
Company Profile
Easun Power Technology Corp Limited is located in Shenzhen China. We offers a full range of Solar product including : Solar inverters/ Solar Charge Controller / Solar panels/ Battery / Solar pump inverters / Power inverters / Portable solar generator, etc. all of our product with low MOQ and in stock for customized logo. We commits to offer high quality products, has a team of professional and experienced specialists in the field of photovoltaic. Our products are now capable of meeting the most demanding requests, both for residential and commercial applications. With a comprehensive sales & marketing network and experienced after-service center, EASUN provides the best service for our customers.
FAQ
1. Who are we?

We are Easun Power factory is a leading high-tech enterprise which established in 2012. It is located in Shenzhen China, sell to
North America(25.00%),Mid East(15.00%),Southern Europe(15.00%),Western Europe(10.00%),South America(5.00%),Eastern
Europe(5.00%),Southeast Asia(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about
50-100 people in our office.

2. Why choose us ?

With strong R&D, manufacture and quality control of inverter products;
We have built a comprehensive sales & marketing network and experienced after-service center;

3. What can you buy from us?

Solar Inverter, Car Power Inverter , Solar Charger Controller,Battery

4. Q: How to order ?

A: Step 1, please tell us model name or link and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the scheduled time.

5. Q: When will make delivery ?

A: Delivery time
-Sample order: 1-3 days after receipt of the full payment.
-Stock order: 3-7 days after receipt of the full payment.
-OEM order: 12-20 days after receipt of the deposit.

6. After-sales Service

1 year warranty for all kinds of Inverter;
If you find any defective accessories after receiving the goods, please contact us at once. we will give you the new parts for
free to replace in the next order after confirmation, as an experienced manufacturer, you can rest assured of the quality and
after-sales service. ( Please refuse to sign if the goods package in broken situation )

7. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Transportation: DHL, UPS , EMS, FedEx, TNT, Air freight , Sea freight, Train way.
