Thuis /Producten/Solar VFD-omvormer/Solar Pump Irrigation System 0.75KW - 630KW Solar Pump Inverter 220V 380V Solar Water Pump Drive Controller For Water Pump

Solar Pump Irrigation System 0.75KW - 630KW Solar Pump Inverter 220V 380V Solar Water Pump Drive Controller For Water Pump

1 piece
MOQ
$85.00(1 - 19 pieces) $79.00(20 - 99 pieces) $72.00(>=100 pieces)
Prijs
Solar Pump Irrigation System 0.75KW - 630KW Solar Pump Inverter 220V 380V Solar Water Pump Drive Controller For Water Pump
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: GS500 Series
Output Current: 4A - 426A
Output Frequency: 0-50/60hz
Output Type: AC
Certificate: CE, ISO 9001/CE
Warranty: 24 months
Product name: Solar Pimp Inverter
Application: Solar Pump Irrigation System
MPPT( maximum power point tracking): 200 - 400Vdc / 350 - 800 Vdc
Rated power: 0.75kw - 220kw
Protection: IP20 / IP54 / IP65
Type: AC/DC mixed input
Phase: 1 Phase/ 3 Phase
Overload Capacity: 150%- 60s
Protection Function: Over-current Protection.overload Protection
Basis informatie
Certificering: CE, ISO 9001/CE
Model Number: GS500 Series
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Carton, Wooden box
Supply Ability: 5000 Piece/Pieces per Month
Productomschrijving

0.75KW - 630KW  Solar Pump Inverter 220V 380V Solar Water Pump Drive Controller for Water Pump

Product Description

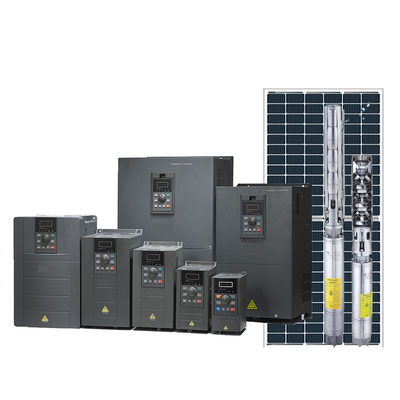

LK-Solar Solar Pump Inverter


Transfer the solar DC to AC, drivers the water pump to supply water, with the functions of MPPT, water level control, AC/DC switching, fully automatic operation, etc., to control and adjust the whole solar pump system operation.



Techniacl Features


♦ Built-in high-precision MPPT function, with accuracy reach up to 99%, make full use of solar energy.
♦ Automatic shutdown and restart, fully automatic control, unattended. (bulit-in water level sensor and light sensor)
♦ Compatible with solar and mains power (or generator) input.

Model introduction

♦ Model Description



♦ GS500 Model

Model No. AC input voltage
(V)		 MPPT voltage range
 (Vmp)		 Output power
(KW)		 Input current
(A)		 Output current
(A)
GS500-0.75G/1.5P-4TB 3PH 380-480V
50/60HZ		 350~800V DC 0.75 3.4 2.1
GS500-1.5G/2.2P-4TB 1.5 5 3.8
GS500-2.2G/3.0P-4TB 2.2 5.8 5.1
GS500-4.0G/5.5P-4TB 4.0 10.5 9
GS500-5.5G/7.5P-4TB 5.5 14.6 13
GS500-7.5G/11P-4TB 7.5 20.5 17
GS500-11G/15P-4TB 11 26 25
GS500-15G/18P-4TB 15 35 32
GS500-18G/22P-4TB 18.5 38.5 37
GS500-22G/30P-4TB 22 46.5 45
GS500-30G/37P-4TB 30 62 60
GS500-37G/45P-4TB 37 76 75
GS500-45G/55P-4T 45 92 91
GS500-55G/75P-4T 55 113 112
GS500-75G/90P-4T 75 157 150
GS500-90G/110P-4T 90 180 176
GS500-110G/132P-4T 110 214 210
GS500-132G/160P-4T 132 256 253
GS500-160G/185P-4T 160 307 304
GS500-185G/200P-4T 185 326 350
GS500-200G/220P-4T 200 385 377
GS500-220G/250P-4T 220 430 426
input DC votlage range(VOC) 2S / 2T: 100~450V DC
4T: 250~800V DC
Input Max open circuit voltage (VOC) 2S / 2T: 450V DC
4T: 800V DC
MPPT efficiency >99%
Over-load capacity 150%:60S; 180%:10S; 200%:1S
Ouput frequency 0~300HZ(Default: 50/60HZ)
On grid/Generator input Yes
Automatic switch between on grid/generator Yes
Working temperature -20℃~60℃;
 when >45℃ or altitude above 1000m, derating as required
Cooling Method Fan Cooling
Communication port Standard isolater RS-485, Modbus protocol
IP grade Standard:IP20 (can customized IP54 or IP65)
Built-in protection shortage of water protection for deep well,full of water protection for tank, light weak sleep, light intensity wake-up, lightning protection, overvoltage protection, undervoltage protection, overcurrent protection, dry pumping protection, overload protection, phase loss protection, short circuit protection, overheat protection.



♦ Solar Pump Inverter Parts Introduction



System Introduction



♦ Complete Solar Sater Pump System: SOLAR PUMP INVERTER
Solar pump inverter, solar water pump, solar panel, solar panel bracket, PV Combiner Box, cable, etc.



♦ Main Application: SOLAR PUMP INVERTER
Farmland irrigation, desert greening, fish farm farming, seawater desalination, animal and plant farming, etc.

Product Uses











Company Information





Shenzhen LK-Solar New Energy Technology Co., Ltd is a professional solar water pump inverter supplier, the company is located in Shenzhen, the main business: solar water pump inverter, VFD, solar water pump, solar water pump irrigation system, etc. Has a professional technical and R&D team to provide first-class service.

Production Workshop

Production Line







Certifications

♦ CE Certificate



♦ ISO Certificate

FAQ

Q 1: How long is your lead time?
A: <20pcs, delivery within 3 days; 20 - 100pcs, delivery within 7 days; >100pcs, 10-15 days.



Q 2: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.



Q 3: What is our advantage ?
A: Professional technical research and development team, rapid production capacity, system scheme design, good after-sales service.



Q 4: What is your terms of payment ?
A:We accept TT, Western Union, Visa Credit Cards.



Q 5: What is the standard of package?
A. Carton or wooden box that meets export standards.



Q 6. Is there any discount ?
A. The discount will depend on the quanlity you purchase.



Q 7.Do you provide warranty for the goods?
A. Yes, we provide 24 months of warranty for all the goods from us.



Q 8.Could LK-Solar provide technical support?
A.We have a professional technical team and R&D team to provide customers with technical support at any time.
