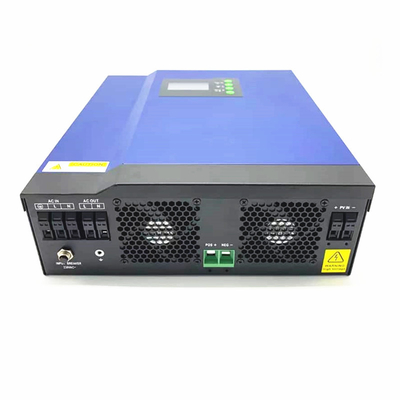

Solar Power System Off Grid 48V 3000W MPPT Solar Hybrid Inverter With 100A MPPT Solar Charge Controler

20.0 Pieces
MOQ
Solar Power System Off Grid 48V 3000W MPPT Solar Hybrid Inverter With 100A MPPT Solar Charge Controler
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: HSI-3K48
Input Voltage: 120V-500V
Output Voltage: 220V/230V /240V
Output Current: 120A
Output Frequency: 50/60Hz
Output Type: Single, DUAL, Triple
Size: 350*310*100mm
Type: DC/AC Inverters, Hybrid Solar Inverter
Inverter Efficiency: 99.5%
Certificate: CE TUV
Warranty: 2 Years
Weight: 9
MPPT Current: 100A
Battery Voltage: DC 48V
Max PV Array Power: 3000W
Peak Power: 6000W
Max Charging Current: 120A
Application: Solar Power Systerm
OEM: Avaliable
Wave form: Pure Sina Wave
AC Charge Current: 20A
Basis informatie
Certificering: CE TUV
Model Number: HSI-3K48
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Carton Box Packing 450*400*200mm 8KG
Supply Ability: 200000 Piece/Pieces per Month
Productomschrijving
Product Date Sheet
Mode HSI-3K24 HSI-3K48 HSI-4K48 HSI-5K48 HSI-6K48 HSI-6.6K48
Rated Power 3000W 3000W 4000W 5000W 6000W 6600W
Voltage 220V/230V/240V(American Standard 110V/120V can be customized)
AC Input Range 90-280VAC(Appliance); 170-280VAC(UPS)
Freuency Range 50HZ/60HZ(Auto Detection)
Invert Output
Output Voltage/Wave Form Pure Sine Wave
Output Voltage/Frequency 110V/220V/230V/240VAC±5%/50HZ/60HZ
Surge Power 6000W 6000W 8000W 10000W 12000W 13200W
Efficiency(Peak) 98%
Transfer Time 10ms Typical(UPS); 20ms Typical(Appliances)
Norminal DC Input Voltage 24VDC 48VDC 48VDC 48VDC 48VDC 48VDC
Cold Start Voltage 23VDC 46VDC 46VDC 46VDC 46VDC 46VDC
High DC Cut-off Voltage 32VDC 63VDC 63VDC 63VDC 63VDC 63VDC
No load Powe Consumption <20W <20W <20W <20W <20W <20W
Overload Protection 5s@≥150% Load; 10s@≤110-150% Load
AC Charging Current(Max) 20Amp(@V1/p=230VAC)
Charging Voltage 29VDC 58VDC 58VDC 58VDC 58VDC 58VDC

Floating Charging Voltage

27.6VDC 53.5VDC 53.5VDC 53.5VDC 53.5VDC 53.5VDC
MPPT Solar Charging
Max. PV Array Power 3000W 4200W 4200W 5000W 6000W 6900W
PV Array MPPT Voltage Range 120-450VDC
Max PV Array Open Circuit Voltage 500VDC
Max Charging Current 120Amp; (AC Charger Plus Solar Chargeer)
Other Information
Safety Certification CE
Operation Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
Humidity 5% to 90% Relative Humidity(Non-condensing)
Dimension(D*W*H).mm 350*310*100 350*310*100 350*310*100 350*310*100 350*310*100 350*310*100
Net Wright.KG 7.4 7.4 7.4 8 8 8
