Thuis /Producten/van net zonneomschakelaar/AC DC Surge 5000W 24V/48V Pure Sine Wave Off Grid Home Use Inverter Solar DC To AC Solar Inverter 5kw

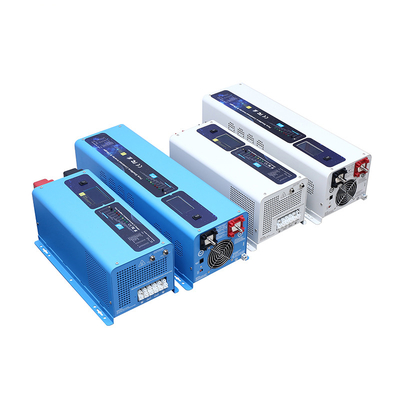

AC DC Surge 5000W 24V/48V Pure Sine Wave Off Grid Home Use Inverter Solar DC To AC Solar Inverter 5kw

1 piece
MOQ
$400.00(1 - 49 pieces) $390.00(>=50 pieces)
Prijs
AC DC Surge 5000W 24V/48V Pure Sine Wave Off Grid Home Use Inverter Solar DC To AC Solar Inverter 5kw
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: IHDC
Input Voltage: 24v/48v
Output Voltage: 110VAC
Output Current: 10A
Output Frequency: 60hz
Output Type: Single, DUAL
Size: 600*185*160
Type: DC/AC Inverters
Inverter Efficiency: 97%
Certificate: CE/RHOS/FCC
Warranty: 24 months
Weight: 32kg
Man-machine interface: LCD screen
Protection class: IP21
Protection function: Ac DC overvoltage, under voltage, Overload, Output short circuit
Communication interface: USB/RS232/SNMP/Wifi(Extra option function)
Basis informatie
Certificering: CE/RHOS/FCC
Model Number: IHDC
Betalen & Verzenden Algemene voorwaarden
Packaging Details: The cartons
Supply Ability: 2000 Piece/Pieces per Month
Productomschrijving

Model(HC) 1000W 1500W 2000W 3000W 4000W 5000W 6000W
Inverte
Output		 Continuous Output Power 1000W 1500W 2000W 3000W 4000W 5000W 6000W
Surge Rating(20s) 3000W 4500W 6000W 9000W 12000W 15000W 18000W
Cpable of Starting Electric
Motor		 1HP 1.5HP 2HP 3HP 4HP 5HP 6HP
Output Waveform pure sine wave/same as input(Bypass mode)
Nominal Efficiency >88%(Peak)
Line Mode Efficiency >95%
Power Factor 0.9-1.0
Nominal Output
Voltage THD		 100-110-120Vac/220-230-240Vac
<10%
DC Input Nominal Input Voltage 12.0Vdc 24Vdc,48Vdc
Minimum Start Voltage 10.0Vdc
Idle Consumption-Search
Mode		 < 25 W when Power Saver On
Charge Input Voltage Range Wide:90~135Vac/164~243Vac;
Narraw:100-135Vac/194~243Vac;
Output Voltage Depends on battery type
Max Charge Rate 35A/70-90A Max (Charger Current Control)
Remote Control Yes.Optional
Bypass &
Protection		 Input Voltage Waveform Sine Wave(Grid or Generator)
Nominal Voltage 120Vac 230Vac
Low Voltage Trip 80V/90V±4% 184V/154V±4%
High Voltage Trip 140V±4% 253V±4%
Max Input AC Voltage 150VAC 270VAC
Nominal Input Frequency 50Hz or 60Hz(Auto detect)
Mechanical
Specification		 Mounting Wall mount
Inverter
Dimensions(L*W*H)		 382*218*179mm 442*218*179mm 598*218*179mm
Inverter Weight 14KG 16KG 19KG 24KG 32KG 34KG 36KG
Shipping
Dimensions(L*W*H)		 520*315*300mm 580*315*300mm 740*315*300mm
Shipping Weight 16KG 18KG 21KG 26KG 35KG 37KG 39KG
Display(Optional) Status LEDs/Status LEDs+LCD
