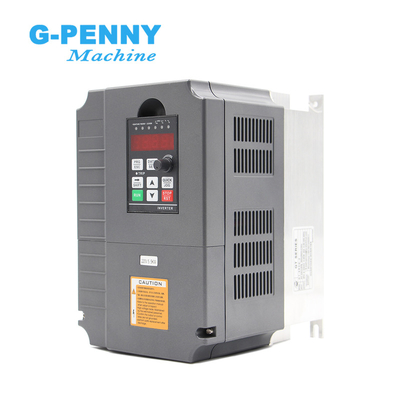

5.5KW VFD Variable Frequency For Hybrid CNC Drive Power Inverters 150*170*223mm

1 Piece
MOQ
5.5KW VFD Variable Frequency For Hybrid CNC Drive Power Inverters 150*170*223mm
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: 5.5KW
Warranty: 3months-1year
Type: Speed Driver
Certificering: CE
Size: 150*170*223mm
Customized: Yes
Rated Power: 5.5KW
Nominal Voltage: 220V/380V
power phase number: 3
Inverter Type: HuanYang
Power: 5.5KW
Voltage: 220v/380v(+/-15%)
Current: 20A/13A
Input Frequency: 48-63 Hz
Output Frequency: 0-400 Hz
Input Phase: 1 or 3 phase
Output Phase: 3
Basis informatie
Certificering: CE
Model Number: 5.5KW
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Carton
Productomschrijving
1 x 5.5kw Variable Frequency Drive VFD
Inverter Type
220V 20A
Input Voltage
220V(+/-15%)
Input Frequency
48-63Hz
Output Voltage
220VAC
Output Frequency
0-400Hz
Input Phase
1 or 3 Phase
Output Phase
3 Phase
Inverter Type
380V 13A
Input Voltage
380V(+/-15%)
Input Frequency
48-63Hz
Output Voltage
380VAC
Output Frequency
0-400Hz
Input Phase
3 Phase
Output Phase
3 Phase
I/O Features
* Programmable Digital Input: Provide 7 terminals which can support ON-OFF inputs, 1 terminal which can support high speed pulse input and PNP, NPN
* Programmable Analog Input: AI1 can accept input of -10V-10V, AI2 can accept input 0-10V or 0-20mA
* Programmable Open Collector Output: Provide 1 output terminal (open collector output or high speed pulse output)
* Relay Output: Provide 1 output terminal
* Analog Output: Provide 2 output terminal, whose output range can be 0/4-20mA or 0-10V, as chosen.

Features
* Control Mode: V/F, Sensorless Vector Control (SVC), Torque control
* Overload Capacity: 60s with 150% of rated current, 10s with 180% of rated current
* Speed Adjusting Range: 1:100 (SVC)
* Carrier Frequency: 1kHz - 15.0kHz
* Frequency reference source: keypad, analog input, HDI, serial communication, multi-stage speed, simple PLC and PID setting. The combination of multi-modes and the switch between diffrent modes can be realized
* PID Control Function
* Simple PLC, Multi-Steps Speed Control Function: 16 stages speed can be set
* Traverse Control Function
* None-Stop when instantaneous power off
* Speed Trace Function: Smoothly start the running motor
* QUICK/JOG Key: User defined shortcut key can be realized
* Automatic Voltage Regulation Function (AVR)
* Automatically keep the output voltage stable when input voltage flucuating
* Fault protections: Protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.
Machinery
winding machine, mixer, extruder, slitter, winder, compressor, ventilator,pump, grinder, conveyor, elevator,centrifuger and other speed control machines.
Shipping Cost
Our products are sold worldwide.
If you need many items in the same time, please contact us in advance to confirm shipping cost.

Payment:
We accept paypal credit, bank transfer, western union etc.
Payment must be made within 7days calendar days of the auction end time.

Problem and Feedback:
PLEASE DON'T leave any negative feedback before you contact us.
We are honest and helpful supplier , we will try our best to solve problems with you.
Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback.
Thanks very much in advance.

Refund:
If you are NOT SATISFIED with our package like the products is damage, please do not sign it and contact us immediately.
If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.

Note:
We can produce the product according to our customer's design.
If you need something is very special, please contact us about it.
We are willing to help you about it.
