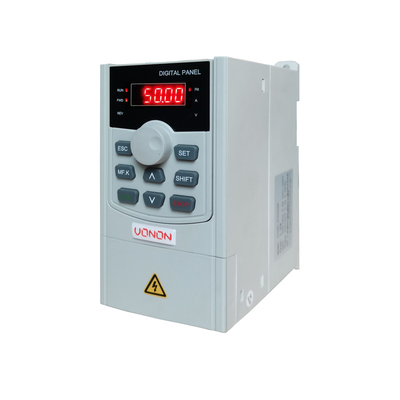

Industrial Equipment Ect Interchange VC Variable Speed ​​0.75kw 2.5A Variable Speed ​​0.75kw 2.5A Inverter AC Drive

1 piece
MOQ
$92.05(1 - 49 pieces) $87.81(50 - 199 pieces) $82.84(200 - 499 pieces) $78.24(>=500 pieces)
Prijs
Industrial Equipment Ect Interchange VC Variable Speed ​​0.75kw 2.5A Variable Speed ​​0.75kw 2.5A Inverter AC Drive
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: V1000-4T0007GB
Warranty: Other
Type: ac drive
Certificering: ce
Size: 12.9*8.45*17CM
Customized: Yes
Control Mode: V/F control, Sensor-less vector control(SVC)
Rated Power: 0.75kw
Nominal Voltage: 380V
power phase number: 3
Application: Industrial Equipment Ect
Color: milk white
Function: VVF,SVC
Rated output current (A): 2.5
Product name: Frequency Inverter VFD
Protection: IP20
Condition: 100%new
Quality: High-quality
Overload Capacity: 150% Rated Current / 60s
Output voltage: 0-380V
Basis informatie
Certificering: ce
Model Number: V1000-4T0007GB
Betalen & Verzenden Algemene voorwaarden
Packaging Details: paper pack-ups
Productomschrijving
Input voltage, frequency
3phase AC 380V-480V±10% 50/60Hz
1/3phase AC 220V-240V±10% 50/60Hz
Power range
3phase AC 380V-480V±10% 0.75KW~400KW
1/3phase AC 220V-240V±10% 0.75KW~22KW
The output voltage
3phase AC 0V-480V±10%
3phase AC 0V-240V±10%
Output frequency
0~600Hz, optional high frequency 0-5000Hz
Terminal input
6 digital inputs, 1 high-speed pulse input; Two analog input terminals
Terminal output
1 high-speed pulse output, 1 digital output; 1 relay output, 1 analog output terminal;
Protocol
Modbus, customized
Braking unit
37KW and below power standard built-in 45KW~55KW optional built-in
Design standard
IEC61800-3, IEC61800-5
Overload capacity
110% long term; 150% 1 minute; 180% 10 seconds; 200%
starting torque
0.5Hz: 150% (V/F) 0.5Hz: 180% (SVC)
Features:
1）Rich product configuration and interface, powerful functions; 2）Standard built-in 485 communication interface, with abundant input terminals, output terminals, and external keyboard interface; 3）Larger rated current design, larger overload current and shorter acceleration time;
4）Built-in industry professional macro application, supports one-key setting of industry parameters;

Special feature

various master & auxiliary setting and switchover, flying start, a variety of Accel/Decel curves optional, automatic correction of analog, brake control, 16-step speed control programmable (2-step speed supports flexible frequency command), wobble frequency control, count function, over excitation brake, over voltage stall protection, under voltage stall protection, restart on power loss, skip frequency, frequency binding, four kinds of Accel/Decel time, motor thermal protection, flexible fan control, process PID control, simple PLC, multi-functional key programmable, droop control, autotuning, field-weakening control, V/f separated control
Certifications
FAQ
Q1: Do you provide samples ? is it free or extra ?
A1: Yes, we could offer the sample to test with reasonable charges.We can send the sample to you by express like DHL or UPS,normally you can receive the sample in one week.

Q2: What is your terms of payment ?
A2: 100% in advance . Welcome payhttps://wn88856688.en.alibaba.com/contactinfo.html by Trade Assurance through Alibaba so your payment can get guarantee from ALibaba company. L/C and O/A would be possible for regular customers.

Q3: What is your terms of packing?
A3:Generally, We use carton box pack low rated power VFD, VFDs that are 55KW and above are packed by wooden box. reasonable specialpacking requirements from customers are acceptable for us.

Q4. Do you test all your goods before delivery?
A4: Yes, 100% test before delivery

Q5: How long is your delivery time?
A5: Generally it would be 5-10 days if the goods are in stock. or 15-20 days if the goods are not in stock, it is according to
quantity. we have much experiency supply goods to big customer,so don't worry about the delivery time.
