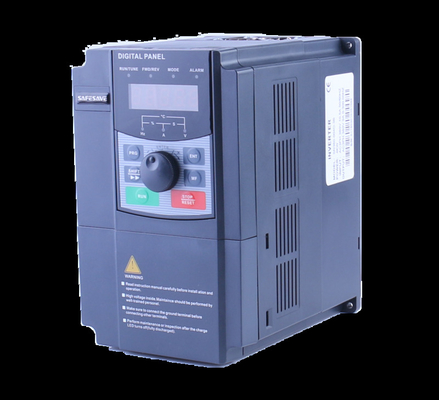

Solar Drive 220v 380v 480v Variable Frequency Pump VFD Inverter 220v 380v Solar Converter 23.6*24.7*19.6cm

1.0 Sets
MOQ
Solar Drive 220v 380v 480v Variable Frequency Pump VFD Inverter 220v 380v Solar Converter 23.6*24.7*19.6cm
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: SN360-3B
Input Voltage: DC200V-DC750V,AC 220V,380V,480V
Output Voltage: AC220V,AC380V,AC480V
Output Current: 2.1A,3.8A,5.1A
Output Frequency: 0.00 ~ 400.00Hz
Output Type: Multiple
Size: 23.6*24.7*19.6cm
Type: Other
Weight: 2.4kg
Certificering: CE,ISO9001
Solar DC input: 400V-750V
AC input: 220V,380V,480V
AC output: three phase 220V,380V 480V
Rated power: 0.75kw 1.5kw 2.2kw
Inbuilt bypass: Yes
Digital display: LED
Efficiency: 99%
Warranty: 18 months
Protection: Overvoltage,overload,overheat,dry run etc
Basis informatie
Certificering: CE,ISO9001
Model Number: SN360-3B
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Standard Export Packing
Supply Ability: 10000 Set/Sets per Month
Productomschrijving

Solar VFD Pump Drive 220v 380v 480v Variable Frequency Solar Inverter Converter 0.75kw 1.5kw 2.2kw V/F Control Motor Inverter

Product Description
Products Specification:

1.Multiple input: Solar DC input 200-350V/400-750V;Single phase AC input 220V;Three phase AC input 220V/380V/480V.

2.Multiple output: Three phase AC output 220V/380V/480V.

3.Smart control:

*Self-adaptive Max power point(MPPT),efficiency 99%.

*Automatic regulation of motor speed and the water flow along with the intensity of sunlight.

*Automatic control with water level.Entering sleeping mode at high-water level and automatically restart at low-water level.

*Automatic control with sunlight.Entering sleeping mode with weak sunlight and automatically exits the sleeping mode when the sunlight is becoming stronger.

4.Protection: Over voltage,overload,over heat,dry-run motor protection.

5.Remote monitoring: RS485 communication port is available for pump controller or computer connection.

6.LED digital display: Convenient to understand the working state of the frequency inverter VFD and the devices,and to set the parameters when necessary.

Structural Representation

BASIC SUBMERSIBLE SOLAR WATER PUMPING SYSTEM

SOLAR PUMPING SYSTEMWIRING DIAGRAM

Company Information

FAQ

Q1:Can I have a sample order?
A1:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2:What about the lead time?
A2:Sample needed 3-5 days, mass production time needed 1-2 weeks.

Q3:Do you have any MOQ limit?
A3:1pc for sample checking available.

Q4:How do you ship the goods and how long does it take to arrive?
A4:We usually ship by DHL, UPS, Fedex or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping for option.

Q5:Is it OK to print my logo on modified sine wave inverter?
A5:Yes. Please inform us formally before our production and confirm the design firstly based on the sample.


Q6:Do you offer quarantee for the products?
A6:Yes, we offer 18 months warranty.

Q7:Can I get one for sample?
A7:Yes, we accept sample order or trial order for testing first.

Q8:What's the price and MOQ??
A8:NO MOQ. Please just send us inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price.

Q9:What's you delivery time?
A9:It depends on your quantity, usually 1-3 days for sample order, but for batch order, it according to theactual situation.

Q10:How about your payment and shipment?
A10:Payment: We accept T/T, Western Union, Paypal etc. terms of payment.

Shipment: For sample order, we use DHL, TNT, FEDEX, EMS etc.express; for batch order, by sea or by air.

Q11:How about your warranty?
A11:We provide 1.5 and 2 years warranty for different products and whole life technical support.
