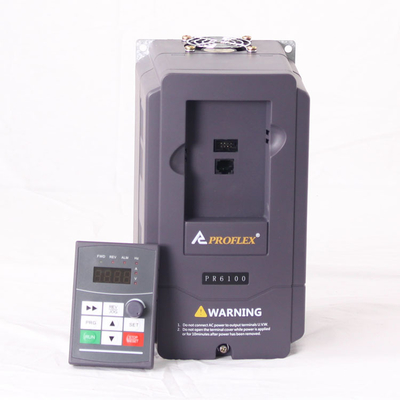

Competitive Price AC Motor High Power Inverter Driver With Low Function7.5kw 82*163*85mm

100 Pieces
MOQ
Competitive Price AC Motor High Power Inverter Driver With Low Function7.5kw 82*163*85mm
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: PR6100-0004S2G-L
Warranty: 18 months
Type: AC-DC-AC
Certificering: CE ISO9001
Size: 82*163*85mm
Customized: Yes
Control Mode: V/F,SVC
Rated Power: 0.4KW
Nominal Voltage: 220V
power phase number: single phase 220v input,3 phase 220v output
Product name: PROFLEX High Frequency Inverter
Overload Capacity: 150%- 60s,180%- 3s
Color: Black
Protection Class: IP20
Output Frequency: 0-600hz
Control model: V/F,SVC
Lead time: Within 7-10 days
Shipment: Sea/air
Market: Worldwide
Other service: OEM/ODM
Basis informatie
Certificering: CE ISO9001
Model Number: PR6100-0004S2G-L, V/F,SVC
Betalen & Verzenden Algemene voorwaarden
Packaging Details: carton+Wooden packing
Supply Ability: 10000 Piece/Pieces per Week
Productomschrijving
Product Description
Place of Origin
China
Brand Name
PROFLEX
Model Number
PR6100-0004S2G-L
Warranty
18 months
Type
AC-DC-AC
Certification
CE ISO9001
Size
82*163*85mm
Customized
YES
Control Mode
V/F,SVC
Rated Power
0.4KW
Nominal Voltage
220V
power phase number
single phase 220v input,3 phase 220v output
Overload
150%- 60s,180%- 3s
Color
Black
Protection
IP20
Output Frequency
0-600hz
Control model
V/F,SVC
Lead time
Within 7-10 days
Shipment
Sea/air
Market
Worldwide
Other service
OEM/ODM
Item
Specifications
Input
Rated voltage and frequency
Single-phase 220V ; Three-phase 220V ; Three-phase 380V; 50Hz / 60Hz
Variable allowable value
Voltage: -20% ~ 20%; Voltage unbalance: <3% ; Frequency:±5%
Output
Rated voltage
0~200V /0~380V
Frequency range
0Hz~400Hz
Overload capability
150% for 1 min, 180% for 1s, 200% instant protection
Main
Modulation mode
Space voltage vector PWM control ;
Control mode
Sensorless vector control (SVC)
Frequency accuracy
Digital setting: Max frequency ×±0. 01%; Analog setting: Max frequency ×±0. 2%
Frequency resolution
Digital setting: 0.01Hz ; Analog setting: Max frequency ×0.1%
Starting Frequency
0.0Hz~10.00 Hz
Torque rise
Auto torque rise, manual torque rise 1%~30.0%(valid for V/F)
V/F curve
Three ways:Linear V/F curve, square V/F curve, user self-defining V/F curve
Acceleration/deceleration
Optional time unit (Min/s), the longest: 3600s (settable in the range of 0.1~3600s).
curve
DC braking
Be optional during both starting and stopping, the operating frequency: 0~20Hz,
operating time: settable within 0~30s
Jogging
Jogging frequency range: 0.1~50.00Hz,jogging acceleration and deceleration time: 0.1~3600s.
Built-in PID
It is convenient for forming closed loop control system,applicable for course control like
pressure and flow, etc.
Multi-speed operating
Realize multi-speed running by built-in PLC or control terminal.
Weaving wobble
Can get wobble frequency of adjustable central frequency
Frequency
Auto voltage adjustment
When main voltage changes,the output voltage may be kept constant by adjusting
PWM output (AVR function).
Auto energy-saving running
According to load condition,V/F curve can be optimized automatically to get the aim of
energy-saving running.
Auto current limiting
Limit in-service current automatically, so as to avoid tripping for fault caused by frequent over current.
Sensorless
Torsion characteristic
150% output of torque at 1Hz, rev accuracy: 0.1%
Motor parameters
Reading the parameters from motor when completely stop in order to achieve optimal
automatic read
controlling effect.
Running
Running command passage
Setting of operating manual; setting of control terminal; setting of serial port; switching by three ways.
Frequency setting
Setting of keyboard analog potentiometer; setting of keyboard ,▲,▼ keys;
setting of functional code digits; setting of serial port, setting of terminal UP/DOWN,
setting of analog voltage, setting of analog current ; setting of impulse, setting of combination;
switching at any time by kinds of setting ways.
Switch input passage
Forward/reverse rotating command, 6-way programmable switching value input to set 30 functions.
Analog input passage
2-way analog signal input, 0~20mA, 0~10V optional.
Analog output passage
Analog signal output 0~10V,0~20mA to get output of physical quantity,like frequency and output frequency。
Switch output passage
3-way programmable open collector output; 1-way relay output signal; can output different physical quantities.
Operating
LED display
Display setting frequency, output voltage, and output current and so on.
Display external
Display output frequency, output current, and output voltage and so on.
instrument
Protection function
Over current protection, over voltage protection, under voltage protection,over heat protection, over load protection.
Option
Braking unit, remote operating panel, remote cable, soleplate of keyboard.
Environment
Service location
Indoors, not suffer from sun, dust, corrosive gas, oil fog, and steam and so on.
Altitude
Shorter than 1000m (derating at higher than 1000m)
Environment
-10°C ~ +40°C
temperature
Humidity
Less than 90%RH, no condensation
Vibration
Less than 5.9m/s²(0.6M)
Storage temperature
-20°C ~ +60°C
Structure
Protection class
IP20 (In service state or keyboard state.)
Cooling way
Air-blast cooling
Installation Way
Wall-hanging, Cabinet
Company Profile
Beijing Prostar International Electric Co., Ltd. Located in the southeast Beijing industrial zone core position - E-town industry town center, located in Beijing zhongguancun science park in jinqiao, and industrial base of science and technology Beijing economic and technical development zone (BDA) connected by American investment group, is 25 million RMB, the domestic famous planning institutions and well-known planning institute jointly create ecological, low density, intelligent, R&D, manufacturing, marketing, logistics, pilot, in the head office of the international industrial park, enjoy the state-level development zone policies. Established in 1987, 22 years of experience in international trade area consistently. Sets processing, production, R&D, sales, the company adhere to the export-oriented economy entity combining theory with practice of scientific development, adhering to the "people-oriented, honesty specialization" idea, the foothold in China, spanning the globe, the matching scheme electric energy quality suppliers. From the beginning of establishment of so far, through the staff more than 20 years of unremitting efforts, has more than 1.5 million sales amount, the sales of the products are sold well in domestic and export countries and regions of sixty, product brand image thorough popular feeling! in order to protect our brand, we have registered PROSTAR ® brand in the world scope of 36 countries international registration, we will often trees ever new, and constantly develop new products for the customers and bring more areas of energy-saving and power supply, extension of the solution of the sales channel, spare no efforts to develop more for building famous brand of China in the world!
Certifications
Our Advantages
1.Our Experiences: We have 14 years export experiences 2.Product Quality: Control chip are supplied by fortune’s Global 500brands 6 experienced QC charge of every step of production 24hours simulation run before delivery. 3.MANUFACTURER: 4000 square meters workshop OEM/ODM is acceptable. 4.Quality: 3000hours of trouble-free operation. 3 years warranty for inverters. Solar controller and ups power supply. 5.Experience: 14 years of production and export. 12 years of R&D. export to more than 50countries. 6.Service: Free design, promotion, training. Free configuration of solar power system.
Exhibition
Package And Shipping
FAQ
Q:MOQ?
A:100PCS.
Q:What is payment?
A:L/C,T/T,Western Union.
Q:Where is your company?
A:Our company is located in Beijing, the capital of China. Welcome everyone to come and visit.
