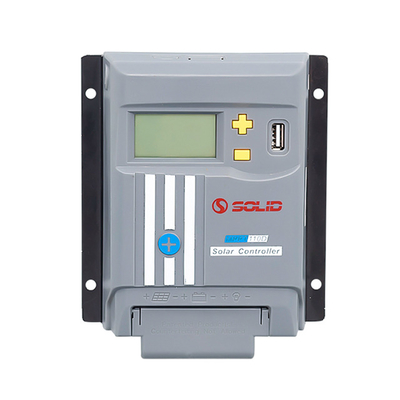

MPPT Battery Charging Controller 40A Charger Controller 12v 24v Auto Solar Power Solar System

1.0 Pieces
MOQ
MPPT Battery Charging Controller 40A Charger Controller 12v 24v Auto Solar Power Solar System
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: MPPT140D
Type: MPPT
Application: Charger Controller, Solar Working Station, Solar System Controller, Battery Charger, Home,solar power system,street light,caravan etc
Work Time (h): 24h
Max PV Voltage: 100v
Certificate: CE
Warranty: 2 years, 2 years
Battery type: Sealed Gel AGM Flooded Lithium
Matetial: ABS+aluminum
Digital display: LCD
USB: 5V 2A
Protection Function: Over charge,over discharge,overload,over current,over temperature
DC load: 12V or 24V bulb
Basis informatie
Certificering: CE
Model Number: MPPT140D
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Packaging Details Package Size: 230*145*70mm PCS/CTN: 30PCS CTN Dimension:635*330*355mm Net/Gross Weight of product:0.86/0.94kg Harvey Phone/WhatsApp:+86-15167876954 www.solidele.com Add: Wenzhou 325600, Zhejiang, China Zhejiang Solid Electric Co.,
Supply Ability: 3000 Piece/Pieces per Week
Productomschrijving





Product Description





Introduction:

1.This is a MPPT solar charge controller,also can be used as a solar light controller by button setting when in "dual time mode",to set the lighting time in day and night.

2.With LCD display function.

3.System voltage is 12/24V auto detected,or can be set 12V or 24V single.

4.USB output:5V 2A,we have single and dual USB port model for selection.

5.Can charge for 6 types of batteries,including:Userdefault battery,Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2 batteries.

6.Charging current:10A,20A,30A,40A in this series can be chosen.

7.Protection function:Over charge,over discharge,overload,over charging current,over temperature,reverpolarity.

8.Shell consists of ABS cover and aluminum base,light in weight and with good ventilation function.

9.2 years warranty is provided for this solar charge controller.

Model

12/24-10A

12/24-20A

12/24-30A

12/24-40A



Rated Voltage

  12/24V auto recognized

Max. Charge Current

10A

20A

30A

 40A

Max. open voltage of solar panel

100V

Battery Types

User default, Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2

Equalized charging voltage

Maintenance-free lead-acid battery :14.6V,GEL:No;Lead-acid Flooded battery: 14.8V

Absorption charging voltage

Maintenance-free lead-acid battery :14.4V,GEL:14.2V ;Lead-acid Flooded battery: 14.6V

Float charging voltage

Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :13.8V

Low voltage disconnect

Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :12.6V

Low voltage recover

Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :10.8V

Over voltage disconnect

16V

Temperature compensation coefficient

-4mV/°C/2V(25°C)



Operating temperature

-20°C ~ +55 °C

Protection class

IP30

Dimension

155.5*127*42.5mm

 174.5*145*50mm  195*160*60mm  215.5*174*65mm
Net weight

360g

525g 835g 1125g



1.Over charge

2.Over discharge

3.Overload

4.Over temperature

5.Over charging current

6.Reverse polarity







FAQ:

Q1:As a manufacturer,what kind of products do you produce?

A1:We mainly produce DC To AC Power Inverter,Solar Hybrid Inverter,Solar Charge Controller,Single Phase&3 Phase Voltage Regulator(Voltage Stabilizer),AC To DC Battery Charger,Inverter With Charger(stand-by UPS) etc.



Q2:How many years of warranty do you provide for your product?

A2:Usually we provide 2 years of warranty for all our products,during this period,when there is something wrong with the product,we replace or fix the product for free based on actual situation ,and we provide lifetime maintenance guidance.



Q3:Talking about power inverter,about the modified sine wave and pure sine wave,the resistive load and inductive load,what’s the difference and relation between them?

A3: Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.

As to inductive load,it refers to the application of electromagnetic induction's principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products'power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.



Q4:What do you think your advantage is?

A4:Same quality level,we offer a better price;Same price level,we provide more reliable quality.Try a sample to test,then you will know we are not just saying it.



Q5:What about your OEM&ODM customization service?

A5:We can put your logo on the product based on a MOQ;You can give us your idea about your own product’s designing-including products’ appearance,function and packaging,our engineer and designing team will do for you.
