Sako Solar Power System Solar Inverter Off Grid Single Phase 100A Battery Charge Controller For Solar Energy Hybrid High Frequency Integrated System

1 Carton
MOQ
Sako Solar Power System Solar Inverter Off Grid Single Phase 100A Battery Charge Controller For Solar Energy Hybrid High Frequency Integrated System
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: SUNON PRO Series
Input Voltage: 120-450VDC
Output Voltage: 230VDC±5%
Output Current: 25A Max.
Output Frequency: 50/60(HZ)
Output Type: Single
Size: 481mm*313mm*117mm
Type: DC/AC Inverters
Inverter Efficiency: 98%
Certificate: CE/IEC
Warranty: 1 Years
Weight: 12KG
Application: Solar Power System
Color: White/Black
Waveform: Pure Sine Wave
Display: LCD
Transfer Time: 10ms(For Personal Computers),20ms(For Home Appliances)
Communication: RS232/RS458
Battery Voltage: 24V/48V
Maximum PV array open circuit voltage: 500VDC
Basis informatie
Certificering: CE/IEC
Model Number: SUNON PRO Series
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Carton Packing
Supply Ability: 30000 Piece/Pieces per Month
Productomschrijving
Product Description

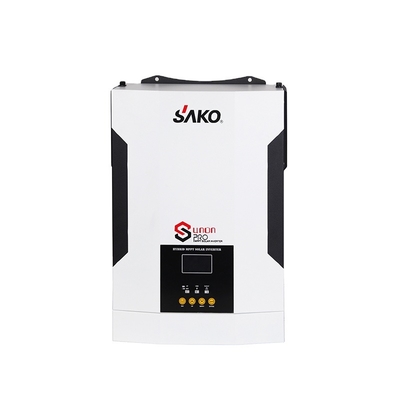

SAKO SUNON PRO Series Pure Sine Wave Solar Inverter 3500W/24V 5500W/48V Built-in MPPT Controller WiFi Optional





Main Features
◆With 100A MPPT Solar Charge Controller Buint-in
◆With High PV Input Voltage Range(120-500VDC)
◆Efficiently Work With or Without Battery
◆With WiFi Function Optional
◆With Touch Botton On the LCD Display
Technical Specification
MODEL
SUNON PRO-3.5K
SUNON PRO-5.5K
The rated power
3500VA/3500W
5500VA/5500W
INPUT
Voltage
230VAC
Selectable Voltage
170-280VAC(UPS) ,90-280VAC(Appliances)
Frequency Range
50Hz/60Hz(Auto sense)
OUTPUT
AC Voltage Regulation(Batt. Model)
230VAC±5%
Surge Power
7000VA
11000VA
Efficiency (Peak)
＞90%
Transfer Time
10s(UPS),20s (Appliances)
Wave Form
Pure sine wave
No Load Current
1.0A
1.1A
BATTERY
Battery Voltage
24VDC
48VDC
Low Battery Alarming Voltage
22.0VDC
44.0VDC
Low Battery Cut Off Protection Voltage
21VDC
42VDC
Low Battery Recovery Voltage
23.0VDC
46.0VDC
Floating Charge Voltage
27VDC
54VDC
Overcharge Protection
32VD
64VDC
MPPT SOLAR CHARGER & AC CHARGER
Maximum PV Array Power
5000W
6000W
MPPT Range at Operation Vol.
120-450VDC
Maximum PV Array Open Circuit Vol.
500VDC
Number of MPPT Trackers /Max. Output Current
100A

Maximum AC Charge Current
60A
Maximum Charge Current
100A
Maximum Efficiency
98%
BEST PANEL CONFIGUTATION
Best Panel Configutation
300W*9PCS*36V(2700W)*2 Parallel
330W*9PCS*36V(2970W)*2 Parallel
PHYSICAL
Production Dimension,D*W*H(mm)
481*313*117
456*313*117mm
Packing Size,D*W*H(mm)
543*394*204
543*394*204
Net Weight(kgs)
9.8
10.5
Gross Weight(kgs)
11
11.7
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity (Non-condensing)
Operation Temperature
-10°C to 50°C
System Configuration And Connection Diagram

Special Function

Product Overview

Installation Case

Packing & Delivery

Support air transportation, sea transportation, express delivery, railway transportation, etc. Please contact us for more information about the mode of transportation.
