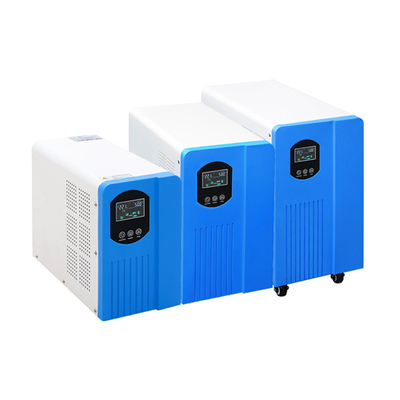

office equipment/voltronic hybrid solar micro inverter 700w 1kw 1500w 2kw 3kw 4kw 5kw 6kw 3kva 5kva household/outdoor power 12v 24v 48v 96v

1.0 Pieces
MOQ
office equipment/voltronic hybrid solar micro inverter 700w 1kw 1500w 2kw 3kw 4kw 5kw 6kw 3kva 5kva household/outdoor power 12v 24v 48v 96v
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: xd-WP
Input Voltage: 12/24/48/96v
Output Voltage: 110VAC / 120VAC / 220VAC / 230VAC/ 240VAC(±2%)
Output Current: 0~20A
Output Frequency: 50Hz±0.5 or 60Hz±0.5
Output Type: Single
Size: 345*170*290 mm~ 490*260*500 mm
Type: DC/AC Inverters
Inverter Efficiency: ≥85%
Certificate: CE /RoHS approved
Warranty: 12 months
Weight: 12kg~50kg
Name: inverter 6000w
Input Stardard battery voltage: 12/24/48/96v solar hybrid inverter
Application: Office equipment/Household/Outdoors
Color: Blue color solar inverter
Battery capacity: Customized
Charging mode: PWM/MPPT
Display: LCD Display
Protection: Over-voltage/low voltage/overload/short circuit and so on
Keyword: 5kw inverter/inverter 12v 220v 5000w
Outputwaveform: Pure sine wave solar inverter
Basis informatie
Certificering: CE /RoHS approved
Model Number: xd-WP
Betalen & Verzenden Algemene voorwaarden
Packaging Details: standard export carton box or wooden box
Supply Ability: 10000 Piece/Pieces per Month
Productomschrijving
Product Description
Inverter Feature

1. Adopt EI transformer, strong impact resistance ability;

2. Pure sine wave output adapt a variety type of loads ;

3. Intelligent LCD integrated display, real-time view of operating status and setting data;

4. AC charging current 0~20A adjustable, more flexible user battery capacity configuration;

5. 3 type working modes (AC first / Battery first / Saving energy mode);

6. Built-in PWM or MPPT solar controller optional;

7. Adding fault code interrogate function, easy for real-time operating status monitoring;

8. Supports diesel or gasoline generator, adapt any tough electricity occasions;

9. Protection against overload, overheat, short circuits, safety and reliable;

10. Support RS485 communication port / mobile APP (optional).



Product Detail









Inverter Technical Parameters



Specification
Model WP/WP-T 70112/24 10212/24 15224/48 20224/48 30224/48 35248/96 40248/96

50248/

96

60248/

96
Rated Power 700W 1000W 1500W 2000W 3000W 3500W 4000W 5000W 6000W
Peak Power(20ms) 2100VA 3000VA 4500VA 6000VA 9000VA 10500VA 12000VA 15000VA 18000VA
Start Motor 0.5HP 1HP 1.5HP 2HP 3HP 3HP 3HP 4HP 4HP
Battery Voltage 12/24VDC 12/24VDC 24/48VDC 24/48VDC 24/48VDC 48/96VDC 48/96VDC

48/

96VDC

48/

96VDC
Max AC charging current 0A~20A(Depending on the model,The maximum charging power is 1/4 of the rated power)
Built-in solar controller charging current (optional) 10A~60A(PWM or MPPT)

24/48V(PWM:10A~60A/

MPPT:10A~100A

48V(PWM:10A~120A/

MPPT:10A~100A) /

96V(50A/100A(PWM or MPPT))
Size(L*W*Hmm) 345*170*290 410*225*390 490*260*500
Packing Size(L*W*Hmm)

410x235x345(1pc)/

490x425x358mm(2pcs)

 473*288*445 550*320*560
N.W.(kg) 10(1pc) 12.5(1pc) 15(1pc) 23 28 32 45 48 50
G.W.(kg) 12(1pc) 14.5(1pc) 17(1pc) 26 31 35 49 52 54
Installation Method Tower
Parameter
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 73VAC~138VAC(110VAC) /  83VAC~148VAC(120VAC) / 145VAC~275VAC(220VAC) /  155VAC~285VAC(230VAC) /  165VAC~295VAC( 240VAC)
AC Input Frequency Range 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
AC charging method Three-stage (constant current, constant voltage, floating charge)
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery Mode) 50Hz±0.5 or 60Hz±0.5
Output Wave(Battery Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
Output Frequency(AC Mode) Follow input
Output waveform
distortion(Battery Mode)		 ≤3%(Linear load)
No load loss(Battery Mode) ≤2.5% rated power
No load loss(AC Mode)  ≤2% rated power( charger does not work in AC mode)
No load loss
(Energy saving Mode)		 ≤10W
Battery Type VRLA Battery Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize battery

Charging and discharging parameters of different types of

batteries can be customized according to user requirements
 (charging and discharging parameters of different types of

batteries can be set through the operation panel)
Protection Battery undervoltage alarm Factory default: 11V(Single battery voltage)
Battery undervoltage protection  Factory default: 10.5V(Single battery voltage)
Battery overvoltage alarm Factory default: 15V(Single battery voltage)
Battery overvoltage protection Factory default: 17V(Single battery voltage)
Battery overvoltage recovery voltage Factory default: 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B

Buzzer sounds 4 times per second when battery failure,

voltage abnormality, overload protection
C

When the machine is turned on for the first time,

the buzzer will prompt 5 when the machine is normal
Inside Solar controller
(Optional)		 Charging Mode PWM or MPPT
PV Input Voltage Range

PWM: 15V-44V(12V system); 30V-44V(24V system);

60V-88V(48V system); 120V-176V(96V system)
 MPPT:  15V-120V(12V system); 30V-120V(24V system);

60V-120V(48V system); 120V-240V(96V system)
Max PV Input Voltage(Voc)
(At the lowest temperature)

PWM:  50V(12V/24V system); 100V(48V system);

200V(96V system) / MPPT: 150V(12V/24V/48V system)
PV Array Maximum Power

12V system: 140W(10A)/280W(20A)/420W(30A)/

560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A);
24V system: 280W(10A)/560W(20A)/840W(30A)/

1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A);
48V system : 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/

2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A)/6720W(PWM 120A)/

5.6KW&11.2KW(MPPT 100A/200A);
96V system:  5.6KW(50A)/11.2KW(100A);
Standby loss ≤3W
Maximum conversion efficiency >95%
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Communication(Optional) RS485/APP(WIFI monitoring or GPRS monitoring)





Wiring Diagram



Application Case







Packaging & Shipping

Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.

Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.


Company Information
About Us



Workshop



Exhibition



Certificate





Related Products
FAQ

A: Are your inverters pure sine wave output?

Q: A Yes, All are true pure sine wave.



A: What kind of output you can do?

Q: Normally we produce inverter with 110V 115V 120V 220V 230V 240V, 50/60Hz self-adaption. If you have special requirements, please tell us for engineer consulting.



A: What' s the difference between low frequency and high frequency inverter?

Q: Low frequency inverter has various protections, strong ability to adapt to the environment. more reliable, with voltage regulation.



A: What's the difference between pure sine wave inverter and modified sine wave inverter?

Q: Pure sine wave output inverter is just as good as the Public power grid. Even better. Low repaired rate, long lifespan, Without harmonic pollution,  enviromental-friendly and appliances protected.

Modified sine wave output has a negative impact on appliances and can't load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don't like the modified wave.



A: What appliances your inverters can load?

Q: Our inverter can be used in household, Office, agricultural appliances and other inductive load such as refrigerator, air conditioner, water pump, etc.



A: Can you print our company logo on inverters, nameplates and packaging?

Q: Yes, we accept OEM orders.



A: How to choose a right inverter?

Q: Tell us your demand, then our sales will recommend a suitable inverter to you.



A: How to solve the technical problem?

Q: 24 hours after-service consultancy just for you and to make your problem to solveeasily.



A: Do I Need A Power Inverter?

Q: Actually, no. This is the only component of a solar energy system that is not absolutely required. However, if you don't use one, you will not have 220 or 230 volts AC and will have use battery power alone. This might be acceptable in a small RV or cabin, but most people want to use normal AC appliances.



A: What's The Difference Between 12, 24, And 48 Volt Inverters?

Q: This refers to the input voltage from the battery bank. The main consideration is that at higher voltages the current is less so that you can use smaller wires between your solar panel array and your battery bank. Of course, when you decide on a system voltage, the Solar Panels, Inverter, and Battery Bank all need to use the same voltage.



A: What to do if the product is broken?

Q: If any product is faulty, you can send the picture or video to us, we sill study it and supply the spare parts of PCB board free for after sale service.
