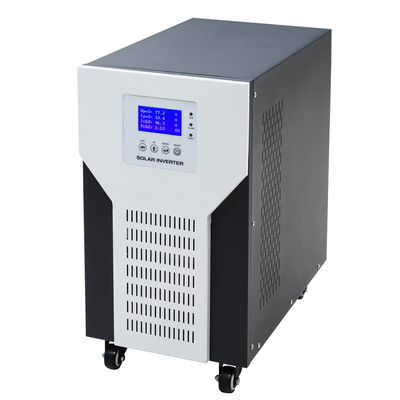

Home Appliance 3000W 5000 Watt 8000 Watt 10000W Silent Solar Inverter 48V 96V DC to AC Power Inverter with Built In MPPT Controller

1 Piece
MOQ
$820.00(1 - 199 Pieces) $620.00(>=200 Pieces)
Prijs
Home Appliance 3000W 5000 Watt 8000 Watt 10000W Silent Solar Inverter 48V 96V DC to AC Power Inverter with Built In MPPT Controller
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: ZRS
Input Voltage: 48vdc or 96vdc
Output Voltage: 220V/230V±2%
Output Current: 62.5a-104.2a
Output Frequency: 50Hz/60Hz
Output Type: Single
Size: 467*280*508mm or 548*300*675mm
Type: DC/AC Inverters
Weight: 47-85kg
Product name: 3KW 5KW 8KW 10KW Inversor Solar
Output waveform: Pure Sine Wave Output
Color: Black and White
Display: LCD+LED Display
Warranty: 12 Months
Frequency: Low Frequency 50/60Hz
Solar charging mode: Dual MPPT
Application: Home Appliance
Battery type: Lead-acid or lithium-ion battery
OEM: Accepted
Basis informatie
Model Number: ZRS
Betalen & Verzenden Algemene voorwaarden
Packaging Details: ZRS 3kw 5kw 8kw 10kw Inversor Solar generally packed with neutral wooden box. 3000w-5000w inverter package dimension(L*W*Hmm): 530*340*635mm, g.w. weight 47kg-56kg 8000w-10000w inverter package dimension(L*W*Hmm): 610*440*800mm, g.w. weight 80kg-85kg
Supply Ability: 5000 Piece/Pieces per Month
Productomschrijving




Feature:

  1. Integrated intelligent energy management system, a variety of modes could be set;

  2. High transfer efficiency;

  3. Ease city grid pressure, reduce electricity bills;

  4. Dual MPPT input, precise algorithm, efficient use of PV energy;

  5. Support multiple parallel operations for user expansion;

  6. Solar system could be either with or without storage battery configuration, to reduce the cost of system;

  7. Either diesel generator input or gasoline generator input is compatible with the system;

  8. Isolated output of low frequency transformer, with strong impact  resistance;

  9. Large LCD screen, operating parameter could be displayed in real time;

  10. Support multiple remote monitoring of communication software(RS232\RS485\Mobile APP\SNMP\GSM).

Parameters
Model:ZRS3KW5KW8KW10KW
PV InputMax input voltage(At 25℃)150V350V
MPPT tracking range60V~120V(Recommend: The open circuit voltage should be less than 120V)120V-240V(Recommend: The open circuit voltage should be less than 240V)
MPPT route number2
Max input power1960W/1960W3360W/3360W5600W/5600W6700W/6700W
Battery
(Flexible configuration)		Type of batteryLead-acid battery / Lithium-ion battery
Rated voltage48V96V
Max charging current
(Can be set,Recommended 0.1C)		70A(PV)/35A(Mains)  120A(PV)/60A(Mains)  100A(PV)/10A(Mains)  120A(PV)/20A(Mains)
Float voltage(Can be set)55.2V110.4V
Charge voltage(Can be set)56.8V113.6V
AC InputRated voltage 220V/230V
Input voltage range187V~264V
Rated input frequency50Hz/60Hz±5Hz
Loss protection time≤2S
Reconnection time30S
AC Output
(PV/Battery mode)		Rated output power3KW5KW8KW10KW
Rated output voltage220V/230V
Output voltage accuracy2%
Rated output frequency50Hz/60Hz
Output frequency accuracy1%
AC Output
 (Mains mode)		Rated output power3KW5KW8KW10KW
Output voltage187V~264V
Output frequency 47~52Hz/57~62Hz
Regular ParameterTopologyTransformer isolation
Protection levelIP20
DisplayLCD+LED
CommunicationRS485(Optional)
Operating temperature-20℃~60℃(Derating above 45°C)
Storage temperature-20℃~60℃
Noise≤60dB
Relative humidity20%~95%(No condensation)
Highest altitude2000m(More than derating)
Machine dimension(L*W*Hmm)467*280*508548*300*675
Package dimension(L*W*Hmm)530*340*635610*440*800
N.W(kg)40497075
G.W(kg)47568085
Installation MethodTower
Warranty1 year



48V 96V Silent Solar Inverter Dispaly



How to use inverter?









48V 96V Silent Solar Inverter wiring method

48V 96V Silent Solar Inverter Workshop




Production Process



Exhibition

48V 96V Silent Solar Inverter Packaging&Shipping

Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.

Payment Team
T/TEXW30% T/T in advance, balance paid before dispatch
FOB
CNF(CFR)30% T/T in advance, balance paid against copy of B/L
CIF
L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional)



Related Product
Certificate



Q&A

Q1: Are you a factory?
A1: Yes, we are a factory of inverter, solar controller and solar generator.


Q2: Are you inverter pure sine wave output?
A2: Yes, all of our inverter are pure sine wave output


Q3: What kind of output you can do?
A3: Normally, we produce inverter with 110v/ 50Hz, 120V/ 60Hz, 220v/ 50Hz, 230v/ 50Hz, 240V/50Hz.
If you have special requirements, pls tell us for engineer consulting.




Q4: What appliances your inverters can load?
A4: Our inverter can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
