Thuis /Producten/Zonne de pompomschakelaar van MPPT/Solar Water Pumping System 55KW 75KW Pump Inverter 220V 380V Solar Water Pump Drive Controller For Water Pump

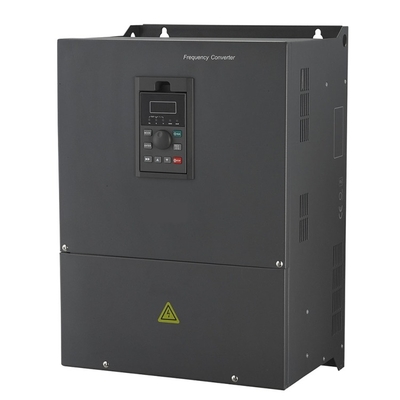

Solar Water Pumping System 55KW 75KW Pump Inverter 220V 380V Solar Water Pump Drive Controller For Water Pump

1.0 piece
MOQ
$724.00(1 - 19 pieces) $696.00(20 - 49 pieces) $668.00(>=50 pieces)
Prijs
Solar Water Pumping System 55KW 75KW Pump Inverter 220V 380V Solar Water Pump Drive Controller For Water Pump
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: GS500-55G/75P-4T
Output Current: 112A
Output Frequency: 0-300HZ
Output Type: AC 380V~480V
Certificate: CE/ISO
Warranty: 2 Years
Application: Solar Water Pumping System
Type: AC Pump Controller
Product name: Solar Pump Inverter 55kw
MPPT( maximum power point tracking): 99% High Efficiency
Input: AC/DC Mixed Input
Protection: IP20 / IP54 / IP65
Display: LED
Keyword: VFD AC Drive
Protection Function: Over-current Protection.overload Protection
OEM: Accept Customization
Basis informatie
Certificering: CE/ISO
Model Number: GS500-55G/75P-4T
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Carton or Wooden Box
Supply Ability: 5000 Piece/Pieces per Month
Productomschrijving

55KW 75KW Solar Pump Inverter 220V 380V Solar Water Pump Drive Controller for Water Pump

Product Description

♦ LK-Solar Solar Pump Inverter solar pump inverter

Transfer the solar DC to AC, drivers the water pump to supply water, with the functions of MPPT, water level control, AC/DC switching, fully automatic operation, etc., to control and adjust the whole solar pump system operation.

♦ Techniacl Features solar pump inverter
♦ Autorun function.
♦ Water level sensing function.
♦ AC/DC input, or mixed input.

♦ MPPT function.

♦ RS485 remote monitoring and data logging function.

Model introduction

♦ Model Description solar pump inverter

♦ GS500 Model solar pump inverter

Model No. AC input voltage
(V)		 MPPT voltage range
(Vmp)		 Output power
(KW)		 Input current
(A)		 Output current
(A)
GS500-0.75G/1.5P-4TB 3PH 380-480V
50/60HZ		 350~800V DC 0.75 3.4 2.1
GS500-1.5G/2.2P-4TB 1.5 5 3.8
GS500-2.2G/3.0P-4TB 2.2 5.8 5.1
GS500-4.0G/5.5P-4TB 4.0 10.5 9
GS500-5.5G/7.5P-4TB 5.5 14.6 13
GS500-7.5G/11P-4TB 7.5 20.5 17
GS500-11G/15P-4TB 11 26 25
GS500-15G/18P-4TB 15 35 32
GS500-18G/22P-4TB 18.5 38.5 37
GS500-22G/30P-4TB 22 46.5 45
GS500-30G/37P-4TB 30 62 60
GS500-37G/45P-4TB 37 76 75
GS500-45G/55P-4T 45 92 91
GS500-55G/75P-4T 55 113 112
GS500-75G/90P-4T 75 157 150
GS500-90G/110P-4T 90 180 176
GS500-110G/132P-4T 110 214 210
GS500-132G/160P-4T 132 256 253
GS500-160G/185P-4T 160 307 304
GS500-185G/200P-4T 185 326 350
GS500-200G/220P-4T 200 385 377
GS500-220G/250P-4T 220 430 426
input DC votlage range(VOC) 2S / 2T: 100~450V DC
4T: 250~800V DC
Input Max open circuit voltage (VOC) 2S / 2T: 450V DC
4T: 800V DC
MPPT efficiency >99%
Over-load capacity 150%:60S; 180%:10S; 200%:1S
Ouput frequency 0~300HZ(Default: 50/60HZ)
On grid/Generator input Yes
Automatic switch between on grid/generator Yes
Working temperature -20℃~60℃;
when >45℃ or altitude above 1000m, derating as required
Cooling Method Fan Cooling
Communication port Standard isolater RS-485, Modbus protocol
IP grade Standard:IP20 (can customized IP54 or IP65)
Built-in protection shortage of water protection for deep well,full of water protection for tank, light weak sleep, light intensity wake-up, lightning protection, overvoltage protection, undervoltage protection, overcurrent protection, dry pumping protection, overload protection, phase loss protection, short circuit protection, overheat protection.
Parts Description

solar pump inverter

System Introduction

♦ Complete Solar Sater Pump System: SOLAR PUMP INVERTER
Solar pump inverter, solar water pump, solar panel, solar panel bracket, PV Combiner Box, cable, etc.

♦ Main Application: SOLAR PUMP INVERTER
Farmland irrigation, desert greening, fish farm farming, seawater desalination, animal and plant farming, etc.

Company Information

Shenzhen LK-Solar New Energy Technology Co., Ltd is a professional solar water pump inverter supplier, the company is located in Shenzhen, the main business: solar water pump inverter, VFD, solar water pump, solar water pump irrigation system, etc. Has a professional technical and R&D team to provide first-class service. solar pump inverter

More product, pls check: www.lk-solar.en.alibaba.com.

FAQ

Q 1: How long is your lead time?solar pump inverter
A: <20pcs, delivery within 3 days; 20 - 100pcs, delivery within 7 days; >100pcs, 10-15 days.

Q 2: Do you provide samples ? is it free or extra ? solar pump inverter
A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.

Q 3: What is our advantage ? solar pump inverter
A: Professional technical research and development team, rapid production capacity, system scheme design, good after-sales service.

Q 4: What is your terms of payment ? solar pump inverter
A:We accept TT, Western Union, Visa Credit Cards.

Q 5: What is the standard of package? solar pump inverter
A. Carton or wooden box that meets export standards.

Q 6.Could LK-Solar provide technical support? solar pump inverter
A.We have a professional technical team and R&D team to provide customers with technical support at any time.

For more questions, please click to contact.
