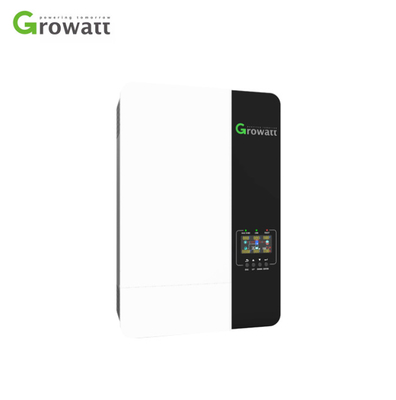

SPF5000ES | ||
Battery voltage | 48VDC | |
INVERTER OUTPUT | ||
RATED POWER | 5000VA/ 5000W | |
Parallel Capability | Yes, 6 units | |
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |
Surge Power | 10000VA | |
Efficiency (Peak) | 93% | |
Waveform | Pure sine wave | |
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |
SOLAR CHARGER | ||
Maximum PV Array Power | 5500W | |
MPPT Range @ Operating Voltage | 120VDC ~ 430VDC | |
Maximum PV Array Open Circuit Voltage | 450VDC | |
Maximum Solar Charge Current | 100A | |
Maximum Efficiency | 97% | |
AC CHARGER | ||
Charge Current | 80A | |
AC Input Voltage | 230 VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
PHYSICAL | ||
Dimension (D/W/H) in mm | 485/330/135 | |
Net Weight (kgs) | 13 | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | 0°C - 55°C | |
Storage Temperature | ‘-15°C - 60°C |
