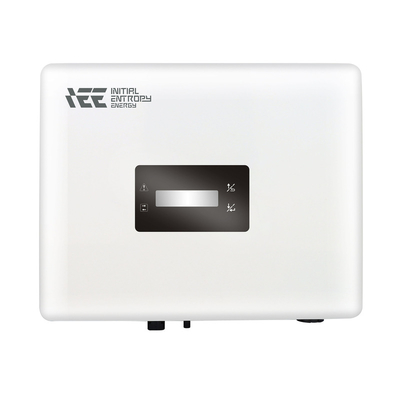

Solar Power System Home China Factory Directly Supply IEE RV5000D Dual Mppt 5KW 220V Single Phase Grid Tie Solar Inverter

1.0 piece
MOQ
Solar Power System Home China Factory Directly Supply IEE RV5000D Dual Mppt 5KW 220V Single Phase Grid Tie Solar Inverter
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: RV5000D
Input Voltage: 100 - 500V
Output Voltage: 187 - 270V
Output Current: 22A(Max.)
Output Frequency: 50 / 60Hz
Output Type: Single, Single
Size: 389*355*150mm, 389*355*150mm
Type: DC/AC Inverters
Inverter Efficiency: 97.5%
Certificate: CE
Warranty: 3-10 years, 3-10 years
Weight: 14.5KG, 14.5KG
Product Name: Grid-Tied Solar Inverter
Nominal AC Voltage: 230V
Operating MPPT Voltage Range [V]: 100 - 500V
Max. Efficiency: 97.5%
Protection: IP65
Application: Solar Power System Home
Basis informatie
Certificering: CE
Model Number: RV5000D
Betalen & Verzenden Algemene voorwaarden
Productomschrijving

China Factory Directly Supply IEE RV5000D Single phase Grid Tie Solar Inverter with Dual Mppt 5KW 220V

Product Introduction

Features

High Efficiency

High conversion efficiency up to 97.5%

Enhanced dynamic MPPT algorithm to make sure accurate and real-time MPP tracking

Compact and Robust

Light weight, compact structure design, easy installation

IP65 protection grade: CapSense Button design to ensure superior water proof performance

Intelligent Monitoring, User Friendly

Easy connection for GPRS or WIF module. Remotely monitoring system anytime and anywhere through web portal or mobile APP

Product Parameters

Inverter RV4000D RV5000D RV6000D
Input (DC)
Max. DC Input Power [W] 4400 5500 6500
Max. DC Voltage [V] 550 550 550
Operating MPPT Voltage Range [V] 100-500 100-500 100-500
Full Load MPPT Range [V] 225-440 280-440 300-440
Nominal Input Voltage [V] 380 380 380
Star Up Voltage/Initial Feeding Voltage [V] 70/150 70/150 70/150
Turn off Voltage [V] 60 60 60
Number of MPP Trackers 2 2 2
Number of DC Connections/Tracker 1 1 1
Max. DC Current per Tracker [A] 12 12 12
Max. Power per Tracker [W] 2500 3000 3500
Output (AC)
Max. AC Output Power [VA] 4000** 5000*** 6000
Nominal AC Output Power [W] 4000** 5000*** 5750
Nominal AC Voltage [V]* 230 230 230
AC Voltage Range [V] 187 - 270 187 - 270 187 - 270
Nominal Frequency [Hz]* 50 / 60 50 / 60 50 / 60
Frequency Range [Hz] 45 - 55 / 55 - 65 45 - 55 / 55 - 65 45 - 55 / 55 - 65
Max. AC Current [A] 17.5 22 25
Power Factor 0.9i - 0.9c 0.9i - 0.9c 0.9i - 0.9c
Total Harmonic Distortion (THD) <3% <3% <3%
Efficiency
Max. Efficiency 97.50% 97.50% 97.50%
Euro Efficiency 97.00% 97.00% 97.00%
MPPT Efficiency 99.90% 99.90% 99.90%
Loss at standby /Loss at night <5W / <0W <5W / <0W <5W / <0W
Safety and Protection
Array ground insulation resistance monitoring Yes
All-pole sensitive residual current minitoring unit Yes
Array polarity reverse protection Yes
Output short circuit protection Yes
Anti-island protection Yes
Surge protection Yes
Protection Class Yes
Overvoltage Category PV Ⅱ / Mains Ⅲ
General Data
Dimensions (WxHxD) [mm] 389*355*150 389*355*150 389*355*150
Weight [kg] 14 14.5 14.8
Environmental Protection Rating IP65
Cooling Concept Natural convection
DC Switch Optional
DC Connertor Amphenol connector
AC Connertor Plug-in connector
Mounting Information Wall bracket
Features
Operating Temperature Range [℃] -25 ~ +60, derating when temperature>45℃
Relative Humidity 0 - 95%,non condensing
Max. Altitude (above sea level) [m] <2000
Noise Emission [dB] <25
Topology Transformerless
Display LCD, CapSense key
Data Communication Interfaces WiFi/GPRS optional
Certifiacation AS 4777.2, C10/11, CE, CEI 0-21, EN 50549, G99,DIN EN 62109 , IEC 62109, RD1699, VDE-AR-N 4105,VDE0126-1-1,IEC 61727, IEC 62116
*The AC voltage and frequency range may vary depending on specific country grid
**power can derating to 3680VA
**power can derating to 3680VA

Production Process

QC Process

Certifications

FAQ

Q1: Can I buy samples for testing?

A:Sure, we could provide samples. 1-2pcs are ok for us.

Q2: How about the delivery?

A: Sampels: about 1-7 days; If it is bulk order, it would be based on the quantity.

Q3: How about your quality and warranty?

A: Our quallity is very good, all the solar inverters will be tested strictly one by one before leaving our factory. We also provide 3-10 years warranty.

Q4:Can you supply OEM &ODM service ?

A:Yes, but there is a minimum order quantity required.
